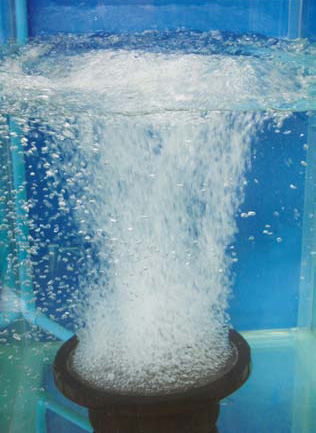

Disc Membrane Air Diffuser

TBC disc diffuser is a fine pore flexible membrane diffuser that provides operational flexibility with maximum oxygen transfer efficiency. TBC 10” & 12.5” diameter diffusers employ a 3/4” diameter PT (male) threaded connection for ease of installation/maintenance and universal application. Alternate materials of construct are available for special applications. TBC disc diffuser units are available with premium quality EPDM membranes. Multiple perforation patterns are available to optimize system performance. The flexible membrane diffusers incorporate an external check valve designed to prevent intrusion of liquids or solids into the diffuser and air piping under normal on/off operating conditions.

Application :

  1. Municipal Wastewater Treatment.
  2. Intermittent Operation Capability.
  3. Clean Water Treatment.
  4. Sludge Stabilization.
  5. Aeration of Fish Ponds.
  6. Aeration of Streams and Lakes.



Technical DataTBC-250TBC-320
Material:
- Membrane with Precision Holes
- Support Dish		High Grade EPDM, Silicone
ABS or PP		High Grade EPDM, Silicone
ABS or PP
Diameter10" (250 mm)12.5" (320 mm)
Size & Quantity of Bubbles1-3 mm / 6,600 holes1-3 mm / 8,300 holes
ConnectionR3/4” PTR3/4” PT
Operation1.5-8.5 m³/h (Max: 8.5 m³/h)3-15 m³/h (Max: 15 m³/h)
Operation Temperature Range0~100 ºC0~100 ºC

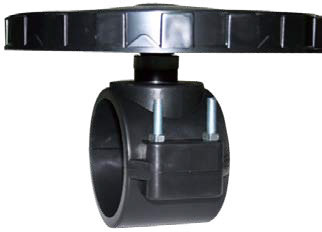

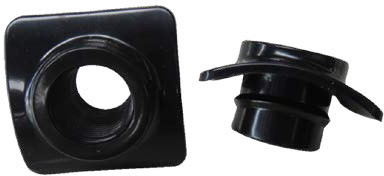

Diffuser Connector



Tube Air Diffuser

Technical DataTBC-300TBC-600
Material:
-Membrane with Precision Holes
-Support Dish		High Grade EPDM, Silicone
PVC		High Grade EPDM, Silicone
PVC
Diameter x Length60 mm x 300 mm60 mm x 600 mm
Size & Quantity of Bubbles1-3 mm / 5,000 holes1-3 mm / 10,000 holes
ConnectionR3/4” PTR3/4” PT
Operation1.8-8.0 m³/h (Max: 12 m³/h)3-14 m³/h (Max: 24 m³/h)
Operation Temperature Range0~100 ºC0~100 ºC
